China Tiny1-C Mini Uncooled Infrared Thermal Camera 256x192 3.2mm with CMOS Sensor for Security Inspection and Hunting Cameras wholesale

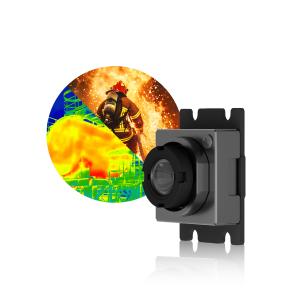

Tiny1-C Mini Uncooled Infrared Thermal Camera 256x192 3.2mm with CMOS Sensor for Security Inspection and Hunting Cameras

Ask Latest Price

Video Channel

Place of Origin :Zhejiang, China

Model Number :TINY1-C 256 3.2mm

Sensor Element Type :CMOS

MegaPixel :256x192

Optical Zoom :Fixed Focus

Image Stabilization :NO

Type :wildlife camera, Security camera, infrared hunting camera, Thermal Camera

Viewing Angle :56°*42°

Lens :3.2mm

Power source type :USB Powered

Application :Smart life, Handheld terminal, Security inspection, Fire safety, Medical health

Auto Focus :NO

Waterproof Grade :Not Water Resistant

Night vision distance :320m

Focal length :3.2mm

Detector :Vanadium Oxide Uncooled Infrared Focal Plane Detector

IR wavelength :8~14μm

NETD :<40mK @25℃, F#1.0, 25Hz

Thermal time constant :<10ms

Detector framerate :≤25Hz

Non-uniformity correction :Auto shutter correction

Temperature measurement range :-15℃~150℃ (high quality) 50℃~550℃ (wide range)

Control interface :SPI/DVP

Core dimensions :13.2mm*13.2mm*8.5mm (see mechanical drawings)

Contact Now

Add to Cart

View Product Description

Tiny1-C Mini Uncooled Infrared Thermal Camera 256x192 3.2mm with CMOS Sensor for Security Inspection and Hunting Cameras

TINY1-C THERMAL IMAGING CAMERA

TINY1-C is a long wave infrared (8-14 μ m, LWIR) miniature thermal imaging module that can convert an object's own thermal radiation into images and temperature data.

This product has small size, light weight, low power consumption, and good image quality, and is suitable for industrial temperature measurement, security monitoring, intelligent IoT and other fields.

Details Images

Product Paramenters

System Overview
Detector	Vanadium Oxide Uncooled Infrared Focal Plane Detector
IR wavelength	8~14μm
Resolution	256×192/160×120
Pixel pitch	12μm
NETD	＜40mK @25℃, F#1.0, 25Hz
Thermal time constant	＜10ms
Detector framerate	≤25Hz
Non-uniformity correction	Auto shutter correction
Image output formats	10bit/14bit
Focus method	Fixed focus
Thermography
Temperature measurement range	-15℃~150℃ (high quality) 50℃~550℃ (wide range)
Temperature measurement accuracy	±2℃ or ±2% (typ.)
Temperature measurement accuracy		Support body temperature detection
Power
Video interfaces	3.3V, 5V
Control interface	SPI/DVP
Typical power consumption	I2C
Video interfaces	Normal mode: 240mW (typ.)
Video interfaces		Peak (shutter power consumption): 600mW (typ.)
Physical Attributes (with lens and flange)
Core dimensions (w×l×h）	13.2mm×13.2mm×8.5mm (see mechanical drawings)
Environmental
Operating temperature range	Imaging: -40℃~80℃
Operating temperature range		Temperature measurement: -10℃~75℃
Storage temperature range	-45℃~85℃
Shock	25g, 11msec, half sine wave, 3 axes
