China Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection wholesale

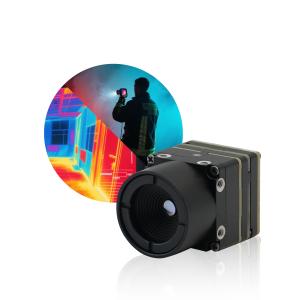

Mini2 256 Thermal Imaging Camera Thermal Camera Hunting with CMOS Sensor Element for Security and Fire Inspection

Ask Latest Price

Video Channel

Model Number :MINI2 256 15mm

Display resolution :256x192

Field of View :11.7°x8.8°

Thermal color palettes :6 color palettes

Thermal Image Pixel :256x192

Image Frequency :25hz

Thermal Sensitivity :≤40mK@25℃,F#1.0,25Hz

NETD :≤40mK@25℃,F#1.0,25Hz

Thermal Time Constant :<12ms

Effective Frame Rate :25/50Hz

Non-uniformity Correction :Shutter correction/shutter-less algorithm correction

Analog Video :PAL/NTSC

Contact Now

Add to Cart

View Product Description

MINI2 256

4mm Lens THERMAL CAMERA

The MINI2 256 series uncooled infrared module features high performance, small size, light weight, low power consumption, and low cost, meeting the application requirements of SWaP (Size, Weight, and Power/Price). The entire series is equipped with a smooth and seamless algorithm, and is equipped with a new generation of infrared dedicated image algorithm, resulting in delicate and clear image quality. The infrared thermal camera provides multiple digital interfaces that can be flexibly connected to various intelligent processing platforms.

Overview	MINI2 256 Thermal Camera
Detector Type	Vanadium Oxide Uncooled Infrared Focal Plane Detector
Resolution	256×192
Effective Frame Rate	25/50Hz
Pixel Pitch	12μm
Spectral Band	8～14μm
NETD	≤40mK@25℃,F#1.0,25Hz
Thermal Time Constant	＜12ms
Image Adjustment
Non-uniformity Correction	Shutter correction/shutter-less algorithm correction
Brightness/Contrast Adjustment	0~100, optional
Polarity/Palette	White-hot/Black-hot/Various palettes supported
Digital zoom	1.0~8.0×continuous zoom (step size: 0.1)
Image Mirroring	Vertical/Horizontal/Diagonal
Electricity Parameters
Analog Video	PAL/NTSC
Digital Video	DVP/BT656/ USB2.0/MIPI
Communication Interface	UART/I2C/USB2.0
Power Supply Input	5V
Typical power consumption of USB output @25℃	＜0.35W
Physical Characteristics
Weight (without lens)	<7g
Dimensions (without lens)	21×21×10.3 mm
Environment Adaptability
Operating Temperature	-40℃~+80℃
Storage Temperature	-50℃~+85℃
Humidity	5%–95%, non-condensing
Vibration	6.06g, random vibration, all axes
Impact	80g, 4ms, final peak sawtooth wave, three axes and six directions
